Ball mill In Asia---China

Date：2014-03-22 05:20:21 ?? Source：Clirik

             Currently,some customers wanted to know something about ball mill,here i will tell something about our ball mill.
             Ball mill,what is the key equitment for materials" grinding after crushing process,it's been widely used in the field of manufacturing industries,like cement, silicate, new type building materials, fireproofing, chemical fertilizer, black and non-ferrous metal and glass ceramics. It can realize dry type or wet type grinding for all kinds of ores and other grindable materials.

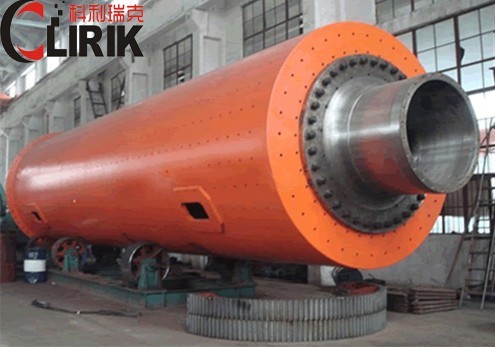

        The ball mill is mainly composed of a feeding mouth, a discharging mouth, the rotary part and the transmission part (reducer, small transmission gears, engine and electric control). The hollow shaft is made of cast steel, the interior lining board changeable. The big rotary gear is fabricated with the casting gear hobbing, with the abrasion resistant lining board in the cylinder. This machine operates smoothly and reliably.
        The ball mill, like a grate,which is a horizontal cylinder rotating device driven by gears with two silos.Put the materials into the first silo through the feeding quill shaft from the feeding device spirally and evenly. The ladder lining board or corrugated lining board in the first silo loaded with steel balls are with different sizes.The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height which then fall down,The centrifugal force produced by the rotation of the cylinder raises the steel balls to a certain height which then fall down, thus making a thump and abrasion to the materials.After the first silo coarse grinding,the materials get into the second silo through the monolayer partition panel with flat lining board embedded with steel sections for further crushing.The powder of the materials will be discharged from the unloading board to finish the grinding work.

Technical Data

Model	Shell rotation speed (r/min)	Ball load (t)	Feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Total weight (t)
Ф900×1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	5.5
Ф900×3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	6.7
Ф1200×2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	29.7	7.5	≤25	0.074-0.4	2-5	75	16.8
Ф1500×4500	27	11	≤25	0.074-0.4	3-6	110	21
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	25.8
Ф1830×3000	25.4	11	≤25	0.074-0.4	4-10	130	29
Ф1830×4500	25.4	15	≤25	0.074-0.4	4.5-12	155	35.5
Ф1830×6400	24.1	21	≤25	0.074-0.4	6.5-15	210	43
Ф1830×7000	24.1	23	≤25	0.074-0.4	7.5-17	245	43.8
Ф2100×3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34.8
Ф2100×4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ф2100×7000	23.7	26	≤25	0.074-0.4	8-48	280	56.6
Ф2200×4500	21.5	27	≤25	0.074-0.4	9-45	280	51.8
Ф2200×6500	21.7	35	≤25	0.074-0.4	14-26	380	60
Ф2200×7000	21.7	35	≤25	0.074-0.4	15-28	380	62
Ф2200×7500	21.7	35	≤25	0.074-0.4	15-30	380	64.8
Ф2400×3000	21	23	≤25	0.074-0.4	7-50	245	58
Ф2400×4500	21	30	≤25	0.074-0.4	8.5-60	320	69
Ф2700×4000	20.7	40	≤25	0.074-0.4	12-80	380	94
Ф2700×4500	20.7	48	≤25	0.074-0.4	12-90	480	102
Ф3200×4500	18	65	≤25	0.074-0.4	As per process conditions	630	137
Ф3600×4500	17	90	≤25	0.074-0.4	As per process conditions	850	158
Ф3600×6000	17	110	≤25	0.074-0.4	As per process conditions	1250	175
Ф3600×8500	18	131	≤25	0.074-0.4	45.8-256	1800	252
Ф4000×5000	16.9	121	≤25	0.074-0.4	45-208	1500	203
Ф4000×6000	16.9	146	≤25	0.074-0.4	65-248	1600	218
Ф4000×6700	16.9	149	≤25	0.074-0.4	45-252	1800	238
Ф4500×6400	15.6	172	≤25	0.074-0.4	54-306	2000	280
Ф5030×6400	14.4	216	≤25	0.074-0.4	68-386	2500	320
Ф5030×8300	14.4	266	≤25	0.074-0.4	88-500	3300	403
Ф5500×8500	13.8	338	≤25	0.074-0.4	108-615	4500	525

see more information,please clickhttp://www.ballmillsupplier.com/clirik/index.php
or you can send your inquiry to sales@clirik.com,it's our pleasure to serve for you.
