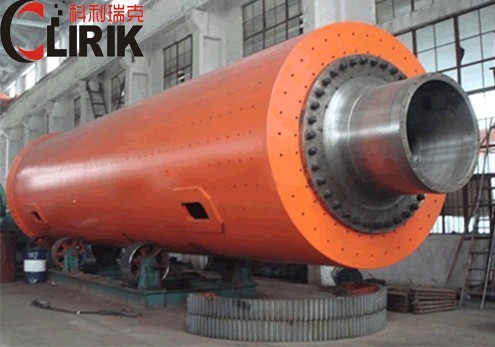

Cement Mill Introduction:
High-efficiency cement mill is mainly applied in the field of  grinding raw materials and final products in cement plant. And it is also applicable for grinding various ores and other materials in the field of metallurgy, chemical, and power industry, etc. In our company，this machine has increased the productivity a lot, and the specific surface area is large, it is a new and high energy grinding equipment, which has realized high capacity and superfine. Compared to internationally stipulated ball mill in the same specifications, under the other situations of the same parameters, the output of the  machine per hour has increased about  20%, and the power consumption per unit product has decreased about  10-15%. For open-circuit grinding, the specific surface area of cement can reach above 320㎡/kg. Besides, the performance of this machine has reached international advanced level, and it is suitable for close-circuit grinding, together with separator.






Main Technical Parameters of Cement Mill:

Spec. (m)	Rotary speed（r/min）	Feed size （mm）	Capacity（t/h）	Load of grinding media （t）	Main motor			Main reducer		Weight (exclude motor and reducer)（t）
					Model	Power（kw）	Speed （r.p.m）	Model	Speed ratio
Φ2.2×11	22.2	≤25	15～17	50	JR1512-8	570	740	ZD80	5	83
Φ2.4×8	20.91	≤25	14～18	39.5～42	JRQ1512-8	570	740	ZD80	5	76.4
Φ2.4×9	20.91	≤25	23～25（close）	50	TR1512-8	570	740	ZD80	5	81
Φ2.4×10	20.91	≤25	16～18（open）	50	TR1512-8	630	740	ZD80	5	92.4
Φ2.4×11	21	≤25	17～19（open） 20～22（close）	60～62	YR710-8/1180	710	740	JDX630	5.6	105
Φ2.4×13	21	≤25	21～22（open） 24～26（close）	66～68	YR800-8/1180	800	740	MBY710	6.3	117
Φ2.6×10	20.6	≤25	21～24	64	YR800-8/1180	800	740	JDX710	6.3	133
Φ2.6×13	20.6	≤25	28～31	80	YR1000-8/1180	1000	740	JDX800	6.3	151
Φ3.0×9	19.13	≤25	35～40（close）	80～83	YR1000-8/1180	1000	740	MBY800	7.1	137
Φ3×11	18.92	≤25	44～47（close）	95～100	YR1250-8/1430	1250	740	JDX900	7.1	159
Φ3×13	18.92	≤25	39～45（open）	110～116	YR1400-8/1430	1400	740	JDX900	7.1	183
Φ3.2×11	18.3	≤25	45～48（close）	110～112	YR1400-8/1430	1400	740	JDX900	7.1	195.5
Φ3.2×13	18.7	≤25	45～55（open）	125	YR1600-8/1430	1600	740	JDX1000	7.15	213
Φ3.5×13	17.5	≤25	50～60	150	YR2000-8/1730	2000	740	JDSX1000	6.3	240.5
Φ3.8×13	16.3	≤25	65～70	185	YR2500-8/1730	2500	740	JS130-C-F1		220
Φ4×13	16.3	≤2	78～80	191	YRKK900	2800	745	JS140-A		200
Φ4.2×11	15.6	≤2	120～140	190	YR2800-8/1730	2800	740	JS140-A-F1D		245
Φ4.2×13	15.6	≤2	140～155	225	YRKK1000-8	3350	995	JS150-A		260
Φ4.6×13	14.5	≤25	140	280	YR1000-6	4500	740			365
Φ5.0×15	14	≤25	160～165	350	YRKK1000-8	6000	740			420
