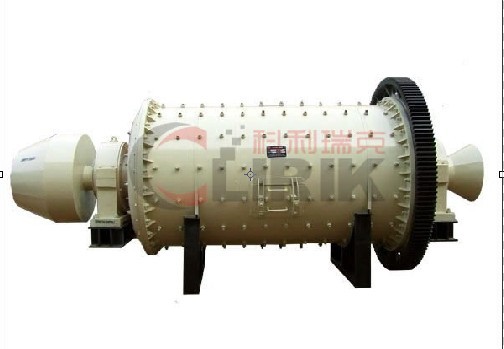

Clirik Energy-saving Ball mill in Shanghai

Date：2014-04-10 05:48:08 ?? Source：Clirik

Introduction of energy-saving ball mill:
      In the current national energy nervous time, power as the main part of energy,all kinds of energy, resources, the objective conditions, the price is higher and higher, there is no doubt that the ball mill operation of the unit using high cost (because the ball mill is the large unit). For countries to reduce electric tension stress, for the sake of the ball mill unit using to reduce running cost, my company after several years of concentrated study and on the advice of the ball mill with manufacturer and information feedback, have produce super energy-saving ball mill, after operation and the long-term practice work, the ball mill produces good economic effect, and the ball mill unit  reduced about 30% 40% electricity costs.
 Feature of Ball mill:
     Super energy-saving ball mill main characteristic is to change the original ball mill driving mode, which changes the original edge transmission way of ball mill for cylinder in the middle period of transmission ways. The original ball mill wheel assembly in the side of the cylinder, and super energy-saving ball mill is the big gear assembly in the middle of the cylinder section, greatly changes the transmission of torque force, according to the principle of mechanics calculation, this way of assembly can make the ball mill power consumption reduced by 30% - 30%, super energy-saving ball mill is: reasonable structure, well made, high output, low energy consumption, stable running, convenient maintenance, "reduce running cost", etc. The innovation of the traditional ball mill is a revolution of ball mill, is really super energy-saving ball mill.

  The parameter of Ball Mill:

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity	Motor power (kw)	Total weight(t)
Ø900*1800	36--38	1.5	<=20	0.075-0.89	0.65-2	18.5	5.5
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	6.7
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	<=25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	16.8
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	<=25	0.074-0.4	3.5-6	130	25.8
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	29
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	35.5
Ø1830*6400	24.1	21	<=25	0.074-0.4	6.5-15	210	43
Ø1830*7000	24.1	23	<=25	0.074-0.4	7.5-17	245	43.8
Ø2100*3000	23.7	15	<=25	0.074-0.4	6.5-36	155	34.8
Ø2100*4500	23.7	24	<=25	0.074-0.4	8-43	245	38
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	56.6
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	51.8
Ø2200*6500	21.7	35	<=25	0.074-0.4	14-26	380	60
Ø2200*7000	21.7	35	<=25	0.074-0.4	15-28	380	62
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	64.8
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	<=25	0.074-0.4	12-80	380	94
Ø2700*4500	20.7	48	<=25	0.074-0.4	12-90	480	102
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137
Ø3600*4500	17	90	<=25	0.074-0.4	-----	850	158
Ø3600*6000	17	110	<=25	0.074-0.4	-----	1250	175
Ø3600*8500	18	131	<=25	0.074-0.4	45.8-256	1800	252
Ø4000*5000	16.9	121	<=25	0.074-0.4	45-208	1500	203
Ø4000*6000	16.9	146	<=25	0.074-0.4	65-248	1600	213
Ø4000*6700	16.9	149	<=25	0.074-0.4	45-252	1800	238
Ø4500*6400	15.6	142	<=25	0.074-0.4	54-306	2000	280
Ø5030*6400	14.4	216	<=25	0.074-0.4	68-386	2500	320
Ø5030*8300	14.4	266	<=25	0.074-0.4	88-500	3300	403
Ø5500*8500	13.8	338	<=25	0.074-0.4	108-615	4500	525

Notice: Any change of barite ball mill technical data shall not be advised additionally.

More info,please click http://www.ballmillsupplier.com
Or you can send your inquiry to www.sales@clirik.com
It would be our pleasure to serve for you.
