The Mechanical Structure of Ball Mill
Date：2017-05-17 01:42:47 ?? Source：Clirik
The ball mill is composed of the main parts, such as feedstock, material, rotary, transmission (decelerator, small transmission gear, motor, electrical control).The hollow shafts are made of cast steel
，the inner lining can be taken apart, the turning gear adopts the casting roll teeth processing, the tube is lined with wear-resistant lining, it has good abrasion resistance.The machine is smooth operation and reliable operation.

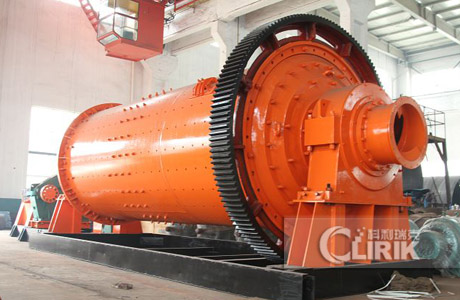

Ball mill host including cylinder, cylinder body with useful lining made of wear resistant material, which has a bearing cylinder and holds its rotating bearings, there are also driving parts, such as motors, and transmission gears, pulley, and triangular belt, etc.
The parts that called blades are usually not the main parts. The inside screw can be called the inner screw blade In the feed inlet part of the feed, the inner screw is also called the inner screw blade inside the part of the material that is out of the feed.
In addition to the auxiliary equipment on the feeding side, there will be parts called screw blades in the device if you use a screw conveyor, but strictly speaking, it is not a part of a ball mill.
According to the way of material and drainage, dry ball mill and wet grate ball mill can be chosen. The energy saving ball mill, With the automatic adjustment of the heart and the spherical roller bearing, the running resistance is small and the energy saving effect is remarkable. The cylinder parts, which add a cone to the original cylinder, increase the effective volume of the mill, and make the distribution of medium medium more reasonable. This productor is used for grinding materials for non-ferrous metals, ferrous metals, non-metallic ore dressing fields and chemical industry.
