Wet Ball Mill
【Feeding size】：≤25mm
【Discharging size】：0.074-0.4mm
【Application】：be suitable for grinding(wet or dry) all kinds of ores and other materials,such as ferrous & non-ferrous metal mine, building materials, chemical, electric power, coal, traffic, light industry, etc.
Wet ball mill are mostly used in the industry production. It is used to increase the high grinding efficiency under the ball mill grinding and striking. The wet type ball mill need to add the liquid into thegrinding ball media auxiliary (water or ethanol). The material output gate is trumpet shape, with screw device inside, easy to discharging the material.
By the wet ball mill, the granularity is even and no flying dust with little noise. It is the most universal powder machine in the benefication as powder grinding the ferrous metal like gold, silver,plumbum,zinc,copper,molybdenum,manganese, tungsten etc, as the nonmetal powder grinding like graphite,feldspar,potash feldspar, phosphorus ore, fluorite, clay, and swell soil etc.

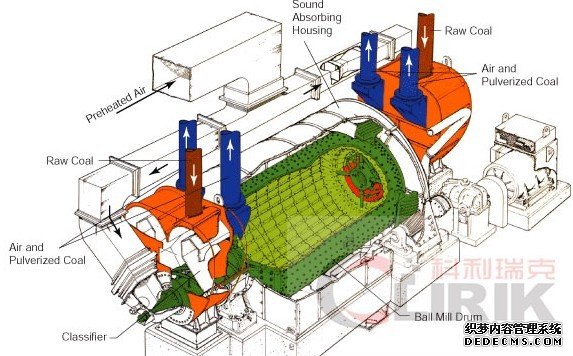

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
|
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity |
Motor power (kw) |
Total weight(t) |
|
Ø900*1800 |
36--38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.5 |
|
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.7 |
|
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
16.8 |
|
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ø1500*5700 |
28 |
12 |
<=25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
29 |
|
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
35.5 |
|
Ø1830*6400 |
24.1 |
21 |
<=25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
|
Ø1830*7000 |
24.1 |
23 |
<=25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
|
Ø2100*3000 |
23.7 |
15 |
<=25 |
0.074-0.4 |
6.5-36 |
155 |
34.8 |
|
Ø2100*4500 |
23.7 |
24 |
<=25 |
0.074-0.4 |
8-43 |
245 |
38 |
|
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-0.4 |
8-48 |
280 |
56.6 |
|
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
51.8 |
|
Ø2200*6500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
14-26 |
380 |
60 |
|
Ø2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
62 |
|
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
|
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ø2700*4000 |
20.7 |
40 |
<=25 |
0.074-0.4 |
12-80 |
380 |
94 |
|
Ø2700*4500 |
20.7 |
48 |
<=25 |
0.074-0.4 |
12-90 |
480 |
102 |
|
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
137 |
|
Ø3600*4500 |
17 |
90 |
<=25 |
0.074-0.4 |
----- |
850 |
158 |
|
Ø3600*6000 |
17 |
110 |
<=25 |
0.074-0.4 |
----- |
1250 |
175 |
|
Ø3600*8500 |
18 |
131 |
<=25 |
0.074-0.4 |
45.8-256 |
1800 |
252 |
|
Ø4000*5000 |
16.9 |
121 |
<=25 |
0.074-0.4 |
45-208 |
1500 |
203 |
|
Ø4000*6000 |
16.9 |
146 |
<=25 |
0.074-0.4 |
65-248 |
1600 |
213 |
|
Ø4000*6700 |
16.9 |
149 |
<=25 |
0.074-0.4 |
45-252 |
1800 |
238 |
|
Ø4500*6400 |
15.6 |
142 |
<=25 |
0.074-0.4 |
54-306 |
2000 |
280 |
|
Ø5030*6400 |
14.4 |
216 |
<=25 |
0.074-0.4 |
68-386 |
2500 |
320 |
|
Ø5030*8300 |
14.4 |
266 |
<=25 |
0.074-0.4 |
88-500 |
3300 |
403 |
|
Ø5500*8500 |
13.8 |
338 |
<=25 |
0.074-0.4 |
108-615 |
4500 |
525 |
