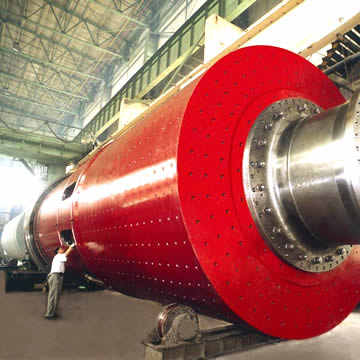

Cement Ball Mill
【Feeding size】：≤25mm
【Discharging size】：0.074mm-0.4mm
【Application】：cement mill is specializing in producing fine and superfine powder. It's designed by our engineers and technicians on the basis of multiple innovation, test and experience over two
High-efficiency cement ball mill is mainly used in grinding raw materials and final products in cement plant. And it is also suitable for grinding various ores and other materials in metallurgy, chemical, and power industry, etc. In our company，this machine has increased the productivity greatly, and the specific surface area is large, it is a new energy-saving grinding equipment, which has realized high capacity and super fine. Compared to internationally stipulated ball mill with same specifications, under the other situation of the same parameters, the output per machine hour has increased by 20%, and the power consumption per unit product has decreased by 10-15%. For open-circuit grinding, the specific surface area of cement can reach above 320㎡/kg. Besides, the performance of this machine has reached international advanced level, and it is suitable for close-circuit grinding, together with separator.
The material spirally and evenly enters into the first warehouse of the ball mill along the input material hollow axis by input material device. In this warehouse, there is a ladder scale board or ripple scale board, and different specification steel balls are installed on the scale board. When the barrel body rotates and then produces centrifugal force, at this time, the steel ball is carried to some height and falls to grind and strike the materials. After being grinded coarsely in the first warehouse, the materials then enter into the second warehouse for regrinding with the steel ball and scale board. In the end, the power is discharged by output material board and the end products are competed.
Techinical Parameter of Ball mill:
|
Model |
Loading Weight
(ton/time) |
Rotate Speed
(r/min) |
Reference Power（KW） |
Liner Material |
|
600×700 |
0.05 |
50 |
2.2 |
Ceramics, Silica, Rubber, Metal(Equipped power will be a little
different according to the liner
material and the processed material) |
|
800×600 |
0.075 |
42 |
3 |
|
900×1200 |
0.2 |
38.5 |
5.5 |
|
1300×1500 |
0.5 |
33 |
7.5 |
|
1500×1800 |
1.2 |
28.5 |
11 |
|
1800×2000 |
1.5 |
24 |
15 |
|
2600×2800 |
5 |
16.5 |
37 |
|
3000×3800 |
10 |
14.5 |
57.2 |
|
3200×4600 |
15 |
13.5 |
75 |
