Limestone ball mill
【Feeding size】：≤25mm
【Discharging size】：0.074-0.4mm
【Application】： It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal
Limestone ball mill machine could carry out dry and wet millings on different materials. Limestone ball mill is a mineral processing machine for milling the materials into powders after they are crushed. It is widely applied to the production of cements, silicate products, building materials, fireproof materials, fertilizers, glass, ceramics as well as nonferrous and ferrous metal processing industries. Limestone ball mill, as a piece of mineral processing equipment, a ball mill is widely used in beneficiation, building material and chemical industries. As proffessional ball mill supplier for more than 30 yeas, we offer various kinds of ball mill for sale.
The features of limestone ball mill
1.The limestone ball mill has high efficiency
2. Long lifecycle of spare parts
3. Our limestone ball mill is with high safety and reliability

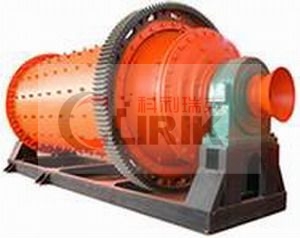

The limestone ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and rippleliner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
|
Model |
Shell rotation speed(r/min) |
Ball load(t) |
Feeding size(mm) |
Discharging size(mm) |
Capacity |
Motor power (kw) |
Total weight(t) |
|
Ø900*1800 |
36--38 |
1.5 |
<=20 |
0.075-0.89 |
0.65-2 |
18.5 |
5.5 |
|
Ø900*3000 |
36 |
2.7 |
<=20 |
0.075-0.89 |
1.1-3.5 |
22 |
6.7 |
|
Ø1200*2400 |
36 |
3 |
<=25 |
0.075-0.6 |
1.5-4.8 |
30 |
12 |
|
Ø1200*3000 |
36 |
3.5 |
<=25 |
0.074-0.4 |
1.6-5 |
37 |
12.8 |
|
Ø1200*4500 |
32.4 |
5 |
<=25 |
0.074-0.4 |
1.6-5.8 |
55 |
13.8 |
|
Ø1500*3000 |
29.7 |
7.5 |
<=25 |
0.074-0.4 |
2-5 |
75 |
16.8 |
|
Ø1500*4500 |
27 |
11 |
<=25 |
0.074-0.4 |
3-6 |
110 |
21 |
|
Ø1500*5700 |
28 |
12 |
<=25 |
0.074-0.4 |
3.5-6 |
130 |
25.8 |
|
Ø1830*3000 |
25.4 |
11 |
<=25 |
0.074-0.4 |
4-10 |
130 |
29 |
|
Ø1830*4500 |
25.4 |
15 |
<=25 |
0.074-0.4 |
4.5-12 |
155 |
35.5 |
|
Ø1830*6400 |
24.1 |
21 |
<=25 |
0.074-0.4 |
6.5-15 |
210 |
43 |
|
Ø1830*7000 |
24.1 |
23 |
<=25 |
0.074-0.4 |
7.5-17 |
245 |
43.8 |
|
Ø2100*3000 |
23.7 |
15 |
<=25 |
0.074-0.4 |
6.5-36 |
155 |
34.8 |
|
Ø2100*4500 |
23.7 |
24 |
<=25 |
0.074-0.4 |
8-43 |
245 |
38 |
|
Ø2100*7000 |
23.7 |
26 |
<=25 |
0.074-0.4 |
8-48 |
280 |
56.6 |
|
Ø2200*4500 |
21.5 |
27 |
<=25 |
0.074-0.4 |
9-45 |
280 |
51.8 |
|
Ø2200*6500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
14-26 |
380 |
60 |
|
Ø2200*7000 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-28 |
380 |
62 |
|
Ø2200*7500 |
21.7 |
35 |
<=25 |
0.074-0.4 |
15-30 |
380 |
64.8 |
|
Ø2400*3000 |
21 |
23 |
<=25 |
0.074-0.4 |
7-50 |
245 |
54 |
|
Ø2400*4500 |
21 |
30 |
<=25 |
0.074-0.4 |
8.5-60 |
320 |
65 |
|
Ø2700*4000 |
20.7 |
40 |
<=25 |
0.074-0.4 |
12-80 |
380 |
94 |
|
Ø2700*4500 |
20.7 |
48 |
<=25 |
0.074-0.4 |
12-90 |
480 |
102 |
|
Ø3200*4500 |
18 |
65 |
<=25 |
0.074-0.4 |
----- |
800 |
137 |
|
Ø3600*4500 |
17 |
90 |
<=25 |
0.074-0.4 |
----- |
850 |
158 |
|
Ø3600*6000 |
17 |
110 |
<=25 |
0.074-0.4 |
----- |
1250 |
175 |
|
Ø3600*8500 |
18 |
131 |
<=25 |
0.074-0.4 |
45.8-256 |
1800 |
252 |
|
Ø4000*5000 |
16.9 |
121 |
<=25 |
0.074-0.4 |
45-208 |
1500 |
203 |
|
Ø4000*6000 |
16.9 |
146 |
<=25 |
0.074-0.4 |
65-248 |
1600 |
213 |
|
Ø4000*6700 |
16.9 |
149 |
<=25 |
0.074-0.4 |
45-252 |
1800 |
238 |
|
Ø4500*6400 |
15.6 |
142 |
<=25 |
0.074-0.4 |
54-306 |
2000 |
280 |
|
Ø5030*6400 |
14.4 |
216 |
<=25 |
0.074-0.4 |
68-386 |
2500 |
320 |
|
Ø5030*8300 |
14.4 |
266 |
<=25 |
0.074-0.4 |
88-500 |
3300 |
403 |
|
Ø5500*8500 |
13.8 |
338 |
<=25 |
0.074-0.4 |
108-615 |
4500 |
525 |
Notice: Any change of limestone
ball mill technical data shall not be advised additionally.
